[Production Capacity: 27-1814t/h]
[Feeding Size: ≤314mm]
[Handing Materials: pebble, cobble, granite, basalt, limestone, quartz, dolomite, bluestone, construction waste, etc.]

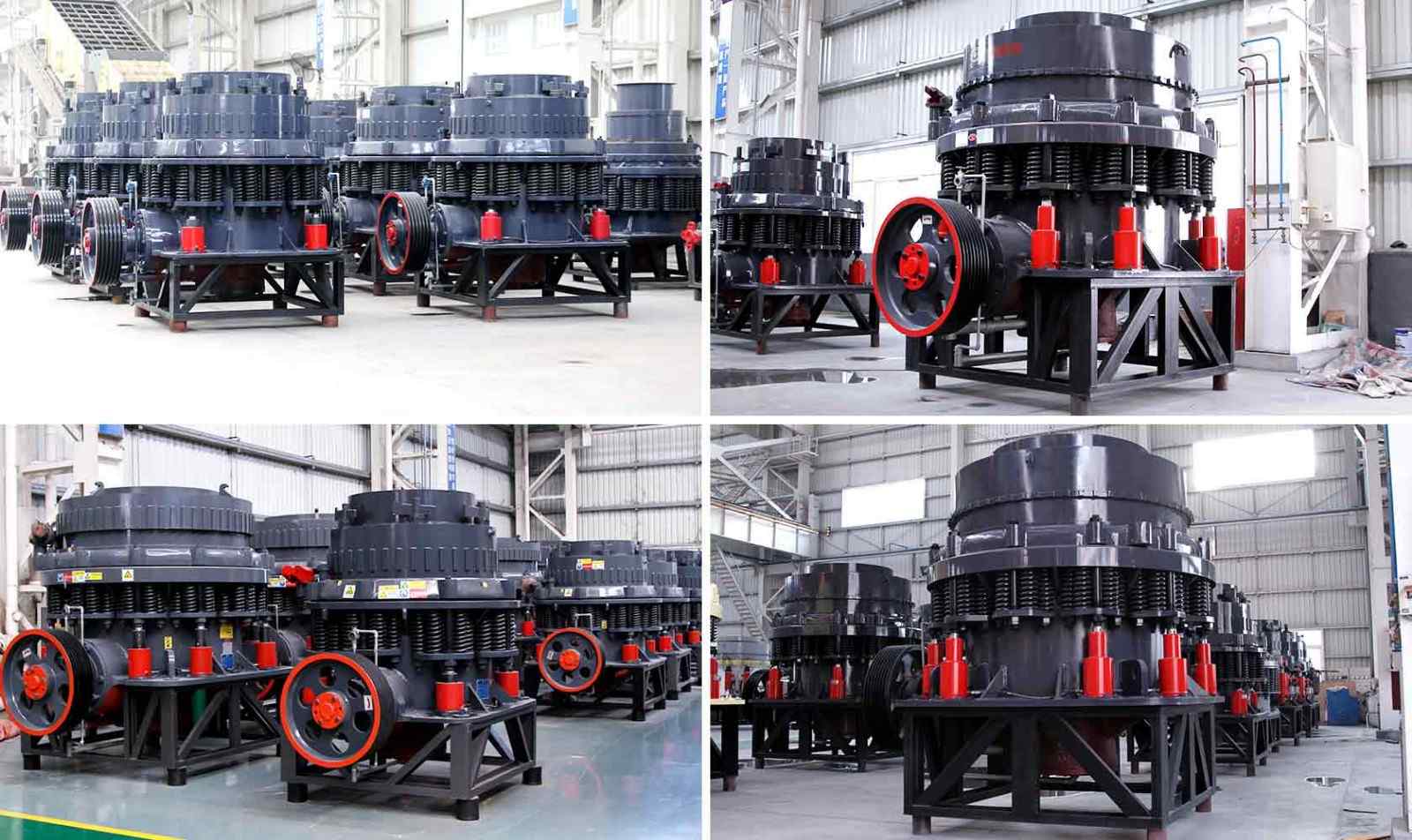

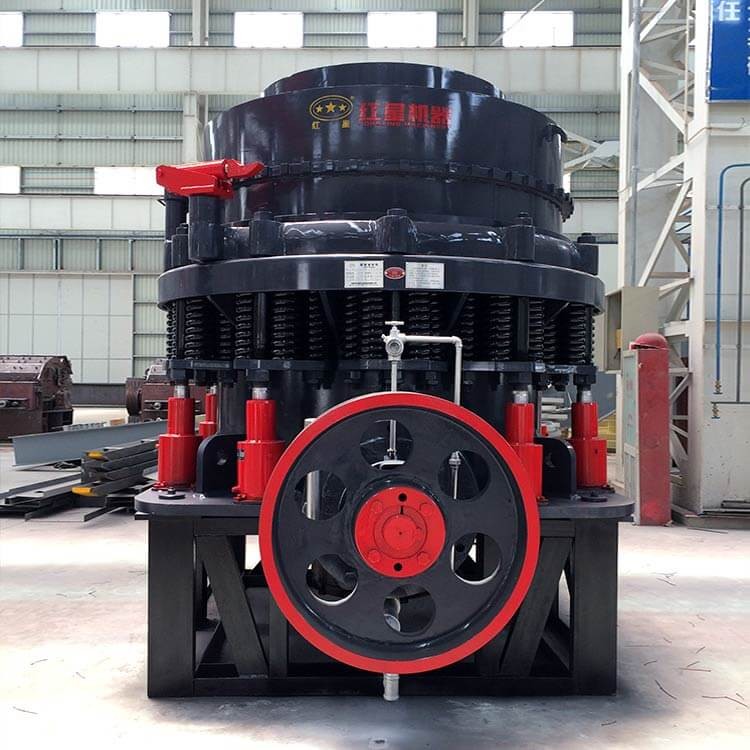

Simons cone crusher is mainly composed of eight parts. The clearance coordination and lubrication between the parts are reasonable, and the equipment runs flexibly. When working, the material is sandwiched between two cones and subjected to extrusion, bending and shearing. It is easy to crush and has low power consumption. The main application in black and non-ferrous metal beneficiation process can effectively reduce the grinding particle size of ore, achieve more grinding and less grinding. It can not only improve the mill production capacity, but also save energy and reduce consumption, and improve the economic efficiency of the concentrator.
Hydraulic cavity cleaning system is used to quickly clean the broken cavity. All components can be disassembled from the upper part or the side so that the fixed cone and the moving cone assembly can be easily disassembled.
Water seal is adopted to reduce dust impurities into the body as much as possible, thus ensuring the cleanliness of lubricating oil, prolonging the service life of sliding bearings, bowl bushes and copper sleeves, and ensuring the reliable operation of the equipment.
Unique design based on intergranular lamination principle can greatly increase the crushing ratio and output, and the cubic finished material can reach more than 75%.
| Type | Model | Diameter of large end of crushing cone（mm） |
Adjusting Range of Discharge Opening（mm） |
Feed opening size of the open edge when recommending the min. Discharge opening （mm） |
Max.feeding size（mm） |
Processing capacity （t/h） |
Main motor power （kw） |
Machine weight （kg） |
| PSG 900 | 0910 | 914 （3′） | 9-22 | 102 | 85 | 45-91 | 6P 75 | 9980 |
| 0917 | 13-38 | 175 | 150 | 59-163 | ||||
| 0904 | 3-13 | 41 | 35 | 27-90 | ||||
| 0906 | 3-16 | 76 | 65 | 27-100 | ||||
| PSG 1300 | 1313 | 1295 （4¼′） | 13-31 | 137 | 115 | 109-181 | 6P 160 | 22460 |
| 1321 | 16-38 | 210 | 178 | 132-253 | ||||
| 1324 | 19-51 | 241 | 205 | 172-349 | ||||
| 1306 | 3-16 | 64 | 54 | 36-163 | ||||
| 1308 | 6-16 | 89 | 76 | 82-163 | ||||
| 1310 | 8-25 | 105 | 89 | 109-227 | ||||
| PSG 1600 | 1620 | 1676 （5½′） | 16-38 | 209 | 178 | 181-327 | 6P 250 | 43270 |
| 1624 | 22-51 | 241 | 205 | 258-417 | ||||
| 1626 | 25-64 | 269 | 228 | 299-635 | ||||
| 1607 | 5-13 | 70 | 60 | 90-209 | ||||
| 1608 | 6-19 | 89 | 76 | 136-281 | ||||
| 1613 | 10-25 | 133 | 113 | 190-336 |
| Type | Model | Max.feeding size（mm） |
Processing capacity （t/h） |
| PSG 900 | 0910 | 85 | 45-91 |
| 0917 | 150 | 59-163 | |
| 0904 | 35 | 27-90 | |
| 0906 | 65 | 27-100 | |
| PSG 1300 | 1313 | 115 | 109-181 |
| 1321 | 178 | 132-253 | |
| 1324 | 205 | 172-349 | |
| 1306 | 54 | 36-163 | |
| 1308 | 76 | 82-163 | |
| 1310 | 89 | 109-227 | |
| PSG 1600 | 1620 | 178 | 181-327 |
| 1624 | 205 | 258-417 | |
| 1626 | 228 | 299-635 | |
| 1607 | 60 | 90-209 | |
| 1608 | 76 | 136-281 | |
| 1613 | 113 | 190-336 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
