[Production Capacity: 12-1000t/h]
[Feeding Size: 35-300mm]
[Handing Materials: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum, etc]

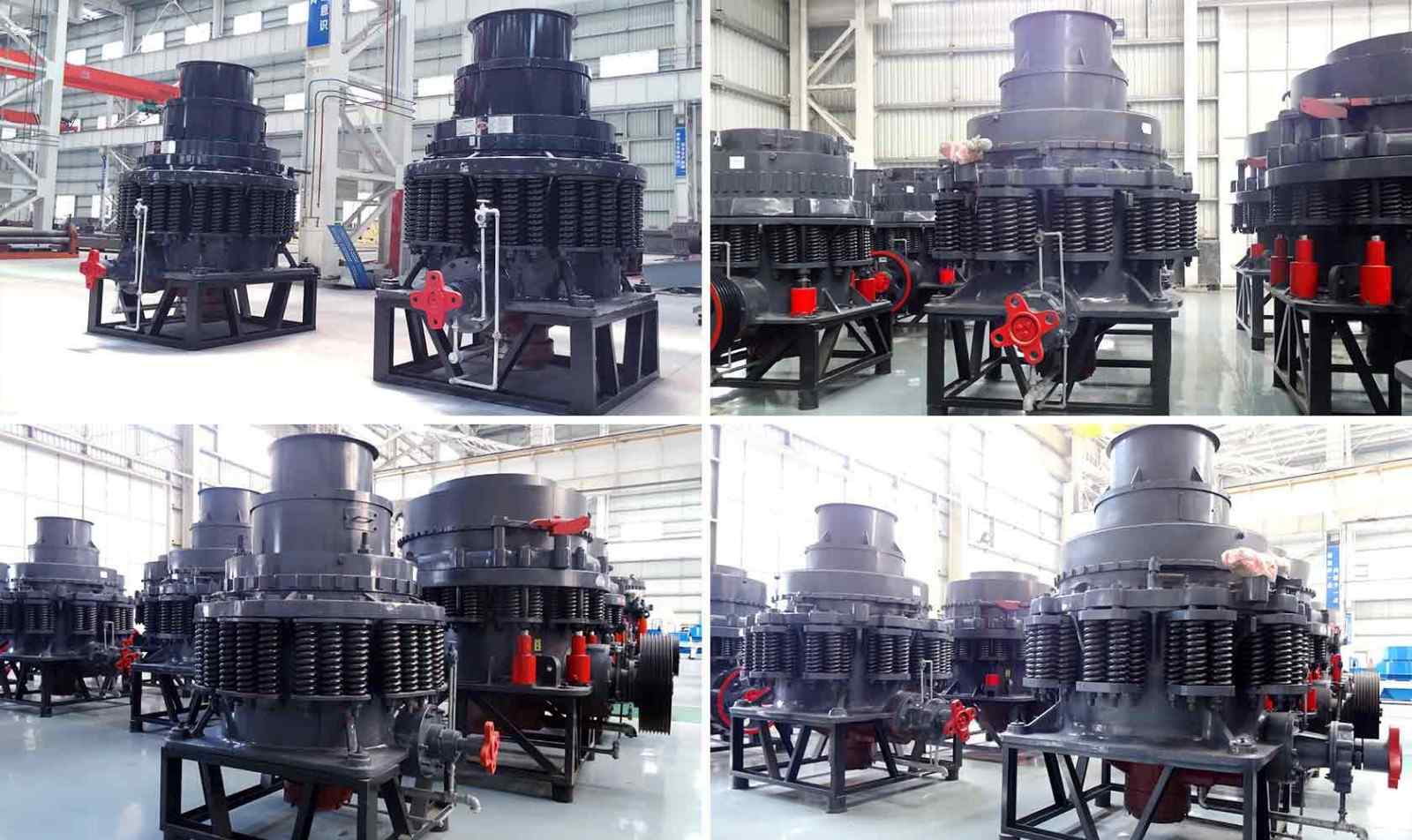

Spring cone crusher is one of the key equipment in the secondary and third crushing process. Spring cone crusher is widely used in the power plant desulphurization, the industry fields such as energy, cement, chemical, building, roads and railways and the materials crushing including pebble, granite, marble, gold ore, barite and dolomite. Cone crusher of Fote machinery can be divided into symons cone crusher spring cone crusher and hydraulic cone crusher, models of which are PYB 、PYD 、PYZ series.
With the alternative lamination crushing way, the working efficiency of the cone crushing machine is 1.5 times higher than the traditional cone crusher.
Production Capacity of the cone crushing machine of Fote machinery is improved by 60%-80%.
Special hydraulic protector and automatic fault detector system can improve its operation security by 99.9% and minimize accident frequency rate.
Perfect iron protection system will release the hard magnetic sundries on the internal crushing cavity at once, which will not affect the running of the equipment and improve its stability.
| Specification | Model | Diameter of large end of crushing cone (mm) |
Max.feeding size(mm) |
Width of discharge opening (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Total weight （t） |
Dimensions (L×W×H) （mm） |
| Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
| Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
| PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
| Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
| Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
| PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
| Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
| PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
| Specification | Model | Diameter of large end of crushing cone (mm) |
Processing capacity (t/h) |
| Φ600 | PYB600 | 600 | 40 |
| PYD600 | 12-23 | ||
| Φ900 | PYB900 | 900 | 50-90 |
| PYZ900 | 20-65 | ||
| PYD900 | 15-50 | ||
| Φ1200 | PYB1200 | 1200 | 110-168 |
| PYZ1200 | 42-135 | ||
| PYD1200 | 18-105 | ||
| Φ1750 | PYB1750 | 1750 | 180-360 |
| PYZ1750 | 80-210 | ||
| PYD1750 | 60-180 | ||
| Φ2200 | PYB2200 | 2200 | 420-700 |
| PYZ2200 | 130-410 | ||
| PYD2200 | 80-200 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
