[Production Capacity: 30-3000t/h]
[Length: 6–40 m]
[Handing Materials: coal, gravel, sand, cement, chemical fertilizer, food, etc]

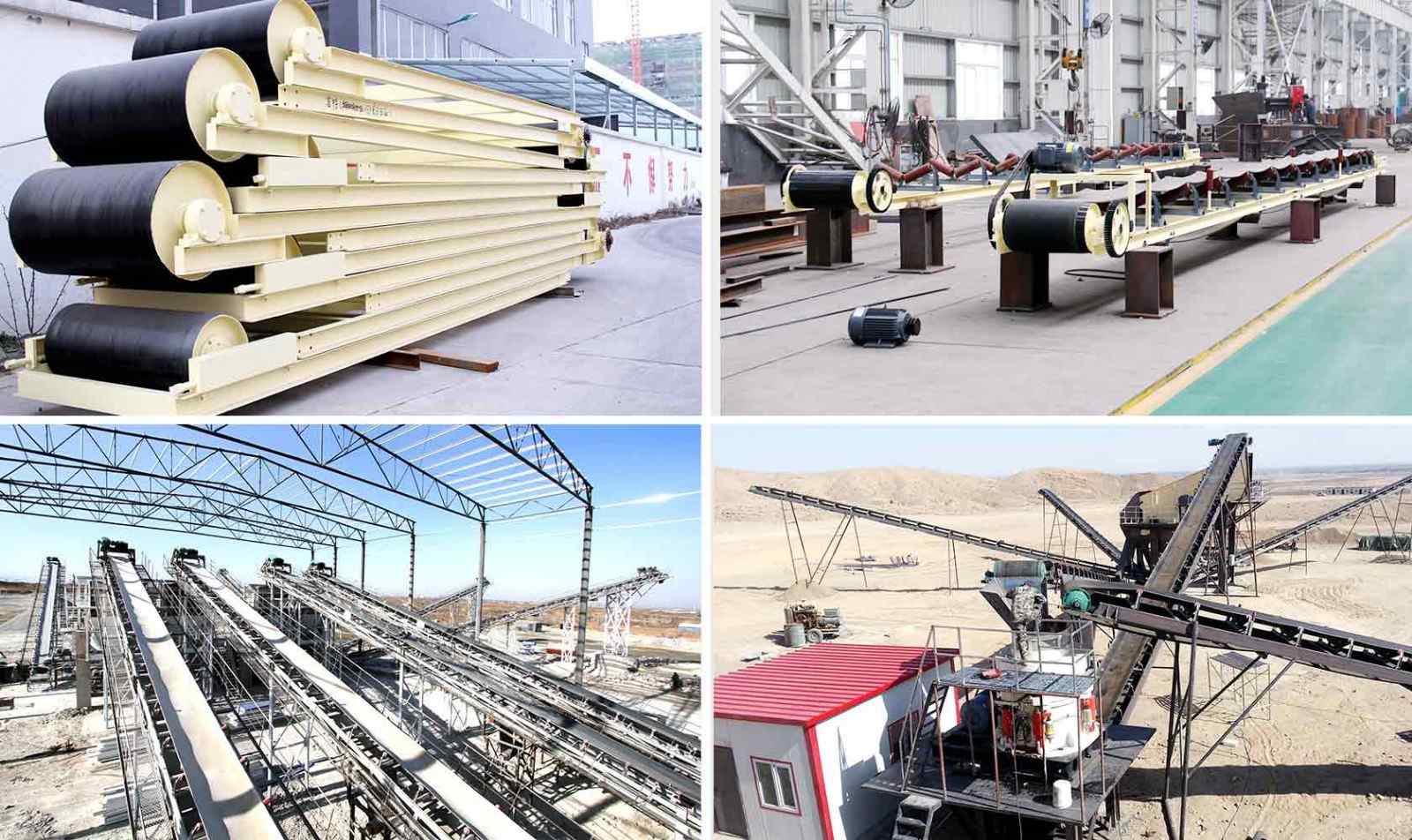

Belt conveyor has the advantages of large conveying capacity, simple structure, convenient maintenance and standardization of components. It is widely used in mining, metallurgy, coal and other departments to transport loose materials or finished goods. According to the requirements of conveying technology, it can be conveyed by one conveyor or by multiple conveyors or other conveyors to form horizontal or inclined conveying systems to meet different layout types. Operating line needs.
Belt conveyor can be used for horizontal or inclined transportation. It is very convenient to use. It is widely used in various modern industrial enterprises, such as underground roadway, surface transportation system, open-pit mining and concentrator, metallurgical, coal, transportation, hydropower, chemical and other departments.
When the conveying capacity and distance of belt conveyor are large, it can be equipped with intermediate drive device to meet the requirements. In addition, according to the requirements of conveying technology, single conveyor can also be combined with multiple conveyors or other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different types of operation lines.
| Belt width(mm) | Conveying length(m) Power(kw) |
Conveying speed(m/s) | Conveying amount(t/h) | ||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
20-50 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
| Belt width(mm) | Converying speed(m/s) | Concerying amount(t/h) |
| 400 | 1.25-2.0 | 30-60 |
| 500 | 1.25-2.0 | 40-80 |
| 650 | 1.25-2.0 | 80-120 |
| 800 | 1.25-2.0 | 120-200 |
| 1000 | 1.25-2.0 | 200-320 |
| 1200 | 1.25-2.0 | 290-480 |
| 1400 | 1.25-2.0 | 400-680 |
| 1600 | 1.25-2.0 | 600-1080 |
| 1800 | 1.0-2.0 | 800-1500 |
| 2000 | 1.0-2.0 | 1000-2000 |
| 2400 | 1.0-2.0 | 1500-3000 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
