Wheeled Mobile Crusher


Detailed content
Leave A Message

[Production Capacity: 30-500t/h]

[Feeding Granularity: ≤700mm]

[Handing Materials: pebble, granite, basalt, limestone, river stone, calcite, quartz stone, dolomite, andesite, bluestone, concrete, iron ore, diabase, coal, etc.]

Welcome To FTM. Scrolls Are Cheap.

Send Inquiry


In addition to crushing hard materials in mining sites, coal mines and cement industries, mobile crushing station equipment can also be used for recycling of construction waste, earthwork, urban infrastructure, roads or construction sites. In addition, it can also be used for peeling crushing of cement concrete road reconstruction, crushing of asphalt concrete before recycling, and so on.

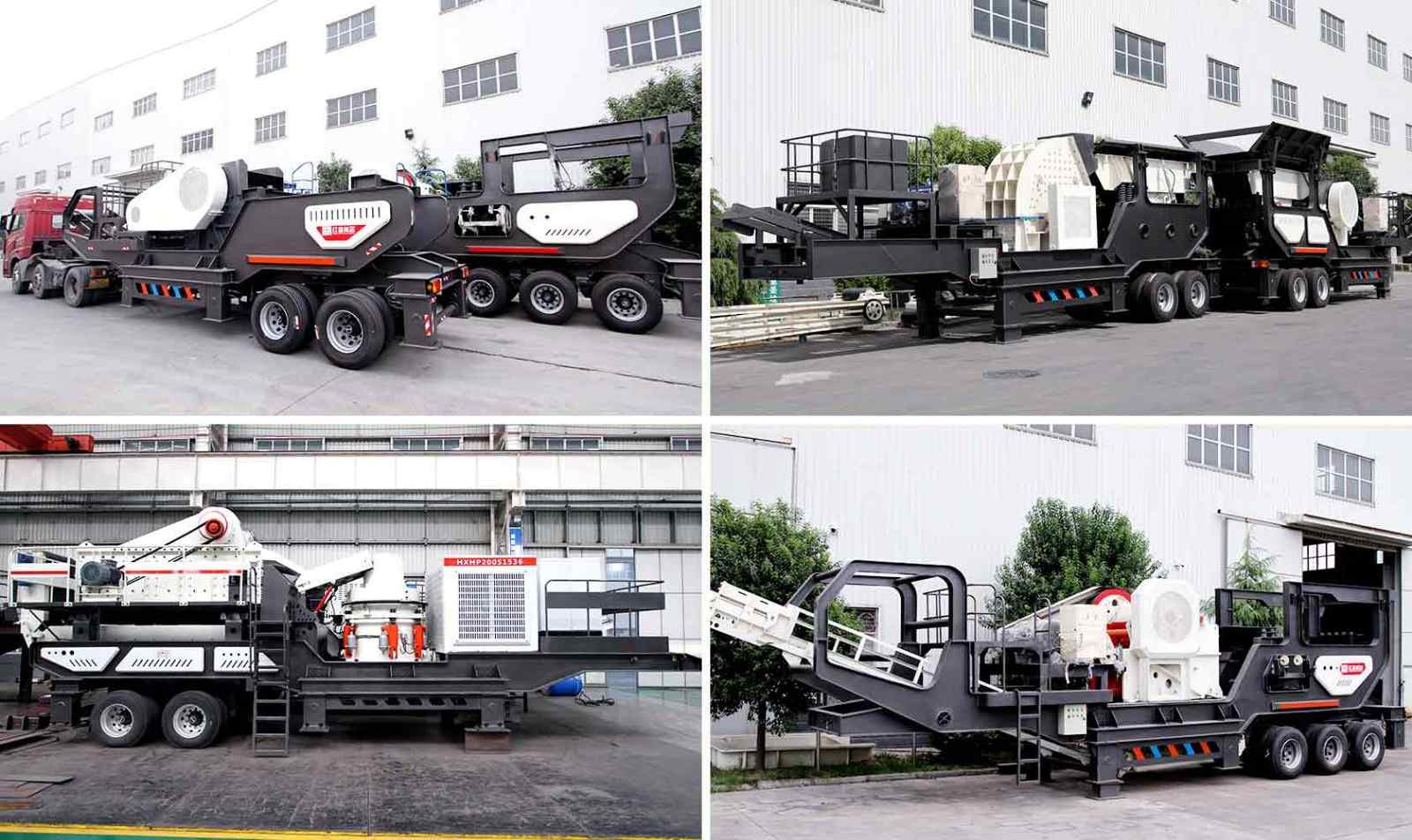

Wheeled Mobile Crusher

Related products

Highlight Advantages

Integrated group machine:

The integrated unit installation mode eliminates the installation operation of the foundation facilities and auxiliary facilities of the complex site with separate components, reduces the consumption of materials and working hours, and this compact space layout also improves the flexibility of site stationing, which makes the transfer operation very convenient.

less money:

Vehicle-mounted mobile crusher can crush materials on site, eliminating the intermediate link of material transportation and re-crushing treatment, greatly reducing the transportation cost of materials.

Customized on demand, more intimate:

It can provide more flexible process configuration according to the material type and product requirements in the process, so as to meet the individual needs of customers.

Send Inquiry

Technical data

Model HX938HD80 HX1149HD98 HX1349HD110 HX1349HD125
Trasportation Length(mm) 12600 13500 14500 15200
Trasportation Width(mm) 2600 2700 2800 2900
Trasportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibtrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Converyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-Opening Belt Converyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional)(kw) 200 250 270 400
Iron Separator(Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
Model Jaw Crusher Capacity(t/h)
HX938HD80 HD80 85-275
HX1149HD98 HD98 110-350
HX1349HD110 HD110 215-510
HX1349HD125 HD125 280-650

Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
