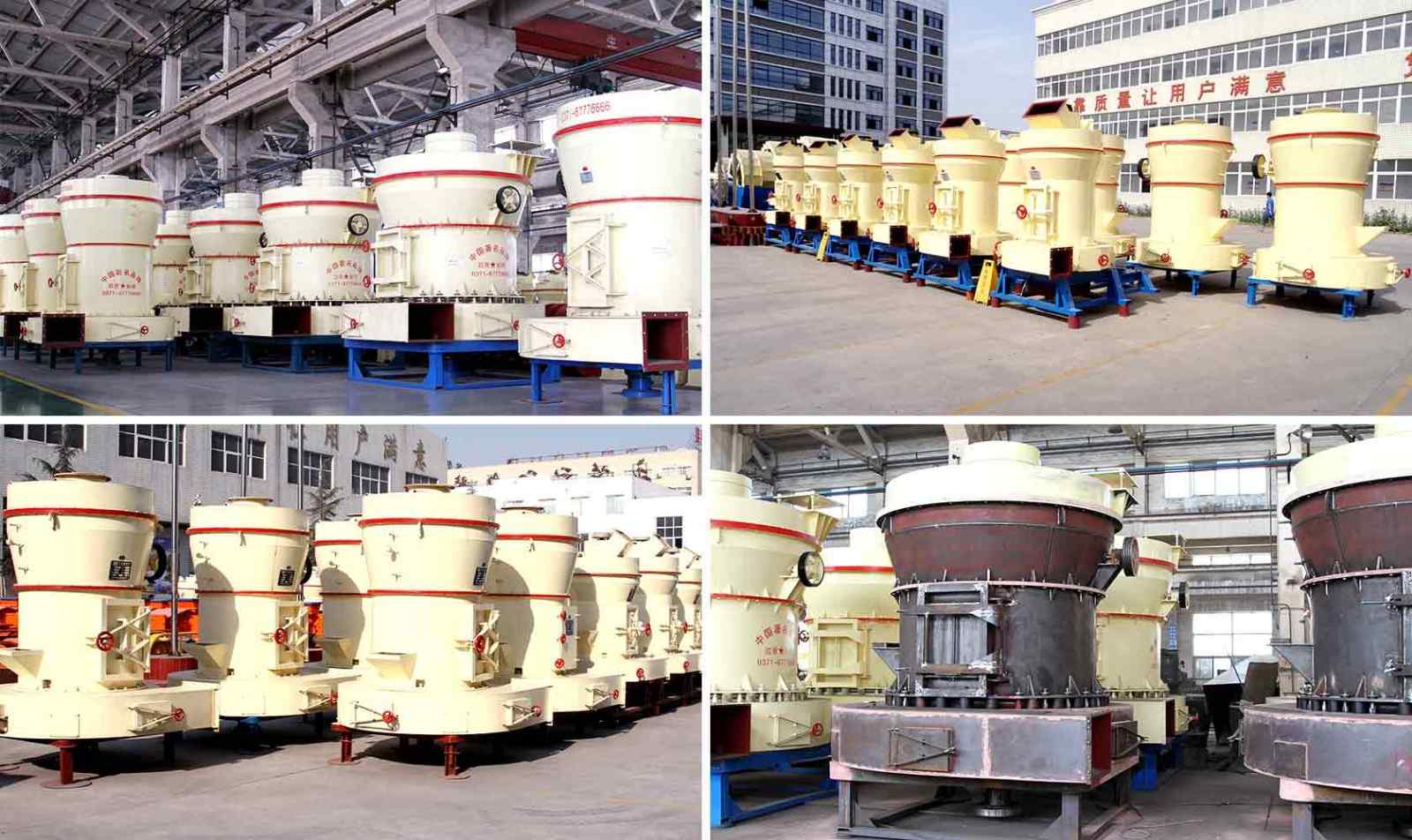

Raymond Mill


Detailed content
Leave A Message

[Production Capacity:1-20t/h]

[Feeding Size: ≤30mm]

[Handing Materials: limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartz, bentonite, etc.]

Welcome To FTM. Scrolls Are Cheap.

Send Inquiry


By the mutual squeeze between roller and grinding ring for materials grinding, raymond mill is the high fine powder grinding equipment with the effective closed cycle. Raymond grinding mill is widely used in small-scale mines, chemical, building materials, metallurgy, refractory, pharmaceutical, cement and other industries.

Raymond Mill

Related products

Highlight Advantages

Uniform Granularity and Higher Quality Finished Product:

With the cubic shape, materials grinded with raymond mill have super fine and more uniform size. There is no acicular and flake structure of finished products. With a 99% sieve passing rate, the finished product has superior quality and confirms to the material requirement of industry field.

Flexible Adaptability and Stable Running:

With the proper technical parameters design, raymond mill is not limited by ore characteristics including granularity size, hardness and humidity and external factors such as environmental and climatic changes. Besides, without faults of vibration and halt on the running process, this equipment keeps a stable and safe running situation.

Reliable Quality and Long Service Life:

Made of international advanced materials of its grinding roller and grinding ring, the raymond grinding mill has an unsurpassable abrasive resistance and corrosion resistance. The low failure rate and reliable quality of raymond mill make it the 3-5years service life extension.

Send Inquiry

Technical data

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
Model Output Size
Shift output of different
materia fineness(t)
4525 0.173-0.044 16-176
4119 0.173-0.044 8-78

Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
