Magnetic separator

MAGNETIC SEPARATOR

Detailed content
Leave A Message

[Production Capacity: 1-220t/h]

[Feeding Size: 0-3 mm]

[Handing Materials: magnetite, pyrrhotite, roasted ore, ilmenite, limonite, etc]

Welcome To FTM. Scrolls Are Cheap.
X

Send Inquiry

Introduction

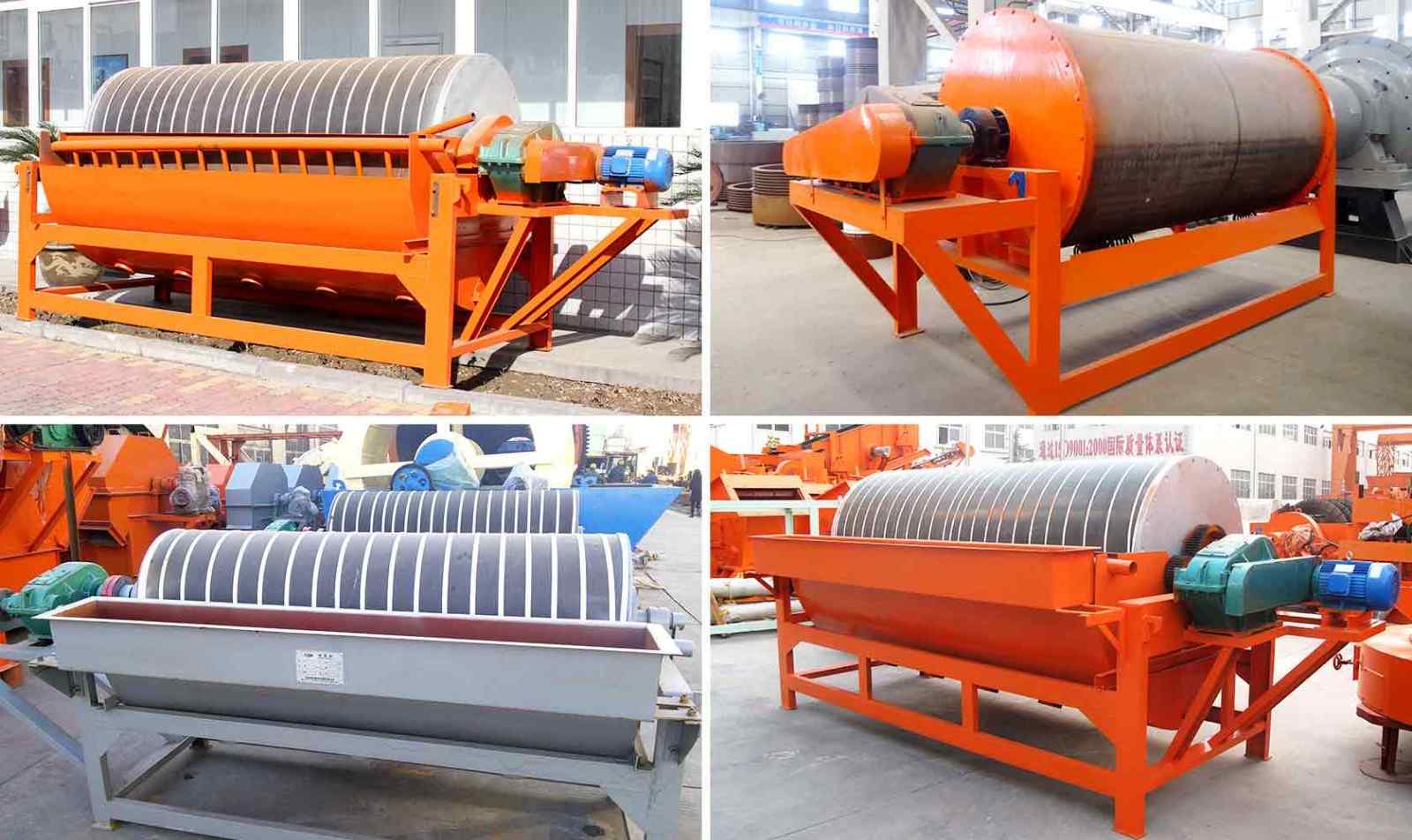

Magnetic separator is the professional refinement and iron removal equipment that can be used in the magnetic iron ore the dressing process such as magnetite, hematite, magnetic pyrite and limonite and non-metallic materials iron removal working including coal, quartz and gypsum. The magnetic system of high intensity magnetic separation machine is composite of high quality ferrite material and thulium magnet and the average magnetic induction intensity is 100-600Mt.

Magnetic separator

Related products

Highlight Advantages

Made of the high quality thulium magnet, its magnetic induction intensity reaches 600mT, which contributes to the higher handling capacity and perfect magnetic and iron removal effect.

Wearable materials of its components increase the compressive resistance and bearing capacity, reducing the replacing times and extending more than 3 times using life.

Perfect inner structure design can prevent the flying dust and the German high efficiency dust-cleaning apparatus control the pollution among the national environmental standard.

Without the working time delay, the equipment delivery work is all among the contract date.

From the equipment purchasing to the contract signing, full service is available. With the free transportation, installation, repair and maintain, you do not have the extra concerns.

Send Inquiry

Technical data

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
Model Feeding size
(mm)
Processing capacity
(t/h)
CTB6012 2-0 10-20
CTB6018 2-0 15-30
CTB7518 2-0 20-45
CTB9018 3-0 40-60
CTB9021 3-0 45-60
CTB9024 3-0 45-70
CTB1018 3-0 50-75
CTB1021 3-0 50-100
CTB1024 3-0 60-120
CTB1218 3-0 80-140
CTB1224 3-0 85-180
CTB1230 3-0 100-180
CTB1530 3-0 170-280

Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
