Drum Dryer

DRUM DRYER

Detailed content
Leave A Message

[Production Capacity: 0.5-50 t/h]

[Cylinder Capacity: 9-285m³]

[Handing Materials: limestone, fly ash, coal powder, slag, clay.]

Welcome To FTM. Scrolls Are Cheap.
X

Send Inquiry

Introduction

Drum Dryer is a kind of dryer, which belongs to building materials equipment. The center of the drum dryer can avoid increasing the dispersing mechanism. The wet material entering the drum body is repeatedly copied and thrown by the sheet on the wall of the drum. During the falling process, the dispersing device breaks up into fine particles, which greatly increases the specific area and fully contacts and dries with the hot air.

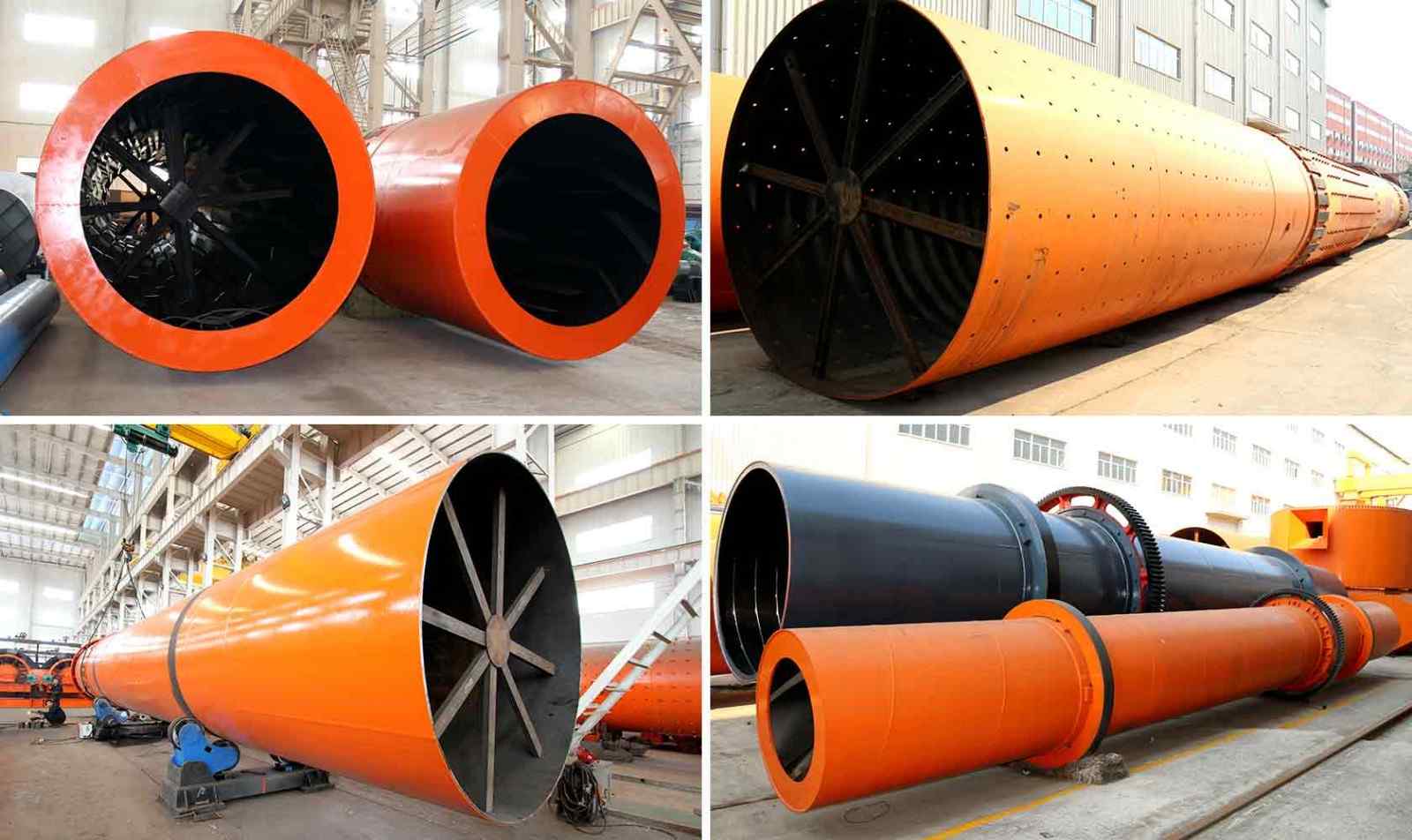

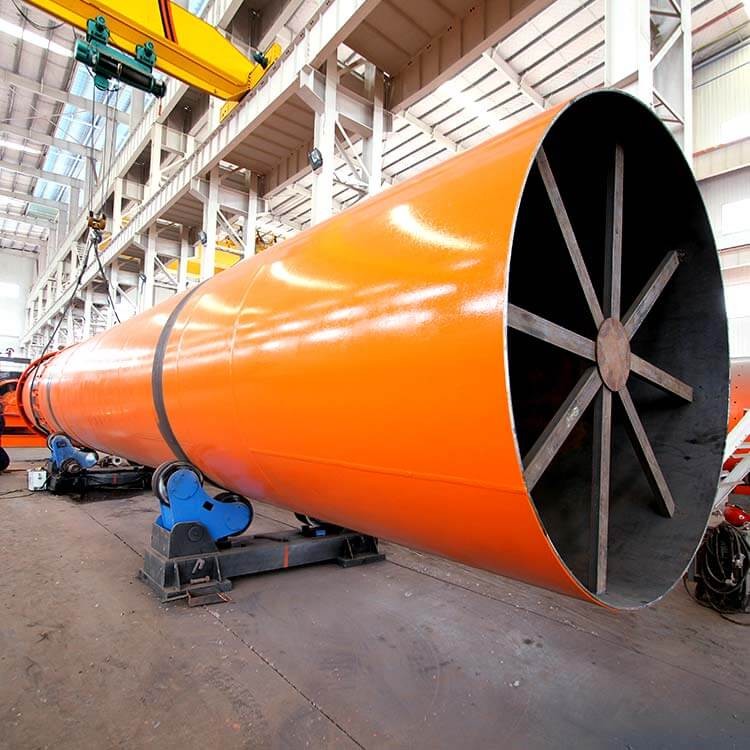

Drum Dryer

Related products

Highlight Advantages

The drum dryer adopts a new type of multi-combination lifting device, which overcomes the "wind tunnel" phenomenon of the traditional dryer, has high thermal efficiency and effectively reduces the coal consumption by about 20%.

Our company specially designed the retaining wheel structure of the drum dryer, which greatly reduced the horizontal thrust caused by the inclined work of the equipment. Strong anti-overload ability, smooth operation of the cylinder, high reliability.

No air leakage phenomenon, completely solved the sealing difficulties, can be installed in two hours; in addition, the thermal efficiency of equipment is up to 80% (the traditional single drum dryer thermal efficiency is only 32%) and increased by 48%.

Roller dryer has strong adaptability to materials, can dry various materials, and the operation of the equipment is simple and reliable, so the dryer equipment has been widely used.

Send Inquiry

Technical data

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
Item/Unit/Model Cylinder volume( m³ ) Production capacity(T/h)
Φ2.5×7m 16.63 Yellow sand25-30
Slag20-25
Φ2.7×7m 16.63 Yellow sand30-35
Slag25-30
Φ3.0×7.0m 52.678 Yellow sand35-40
Slag30-35
Φ3.2×7.0m 52.678 Yellow sand45-50
Slag35-40
Φ3.6×8m 81.38 Yellow sand65-70
Slag60-65

Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
